It's a common and frustrating issue: you've dialed in your design, perfected your settings, and placed the same type of tumbler in your laser machine—only to get different engraving results. Why does this happen? In this article, we explore the most common causes and how to ensure consistent output every time.
1. Focus Height Variations
Even slight changes in focus height can dramatically affect the engraving outcome. If your laser module is not at the exact optimal distance from the surface, the beam can become defocused, resulting in lighter or blurrier engravings.
Solution: Before starting each job, run Framing to check the focus height. Be especially careful when switching between objects of slightly different heights.

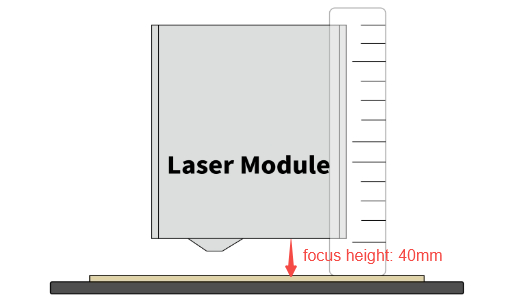

Note: For all WeCreat Models, the optimal height is 40mm from the bottom of the laser module to the surface of the material.
2. Tumbler Placement on the Rotary Attachment
Rotary engraving introduces its own challenges. If the tumbler is not perfectly level or aligned within the rotary attachment, the engraving path can warp or skew.
Solution: Always double-check that the tumbler is evenly seated and well-secured. Use a level if necessary to ensure alignment along the X-axis.

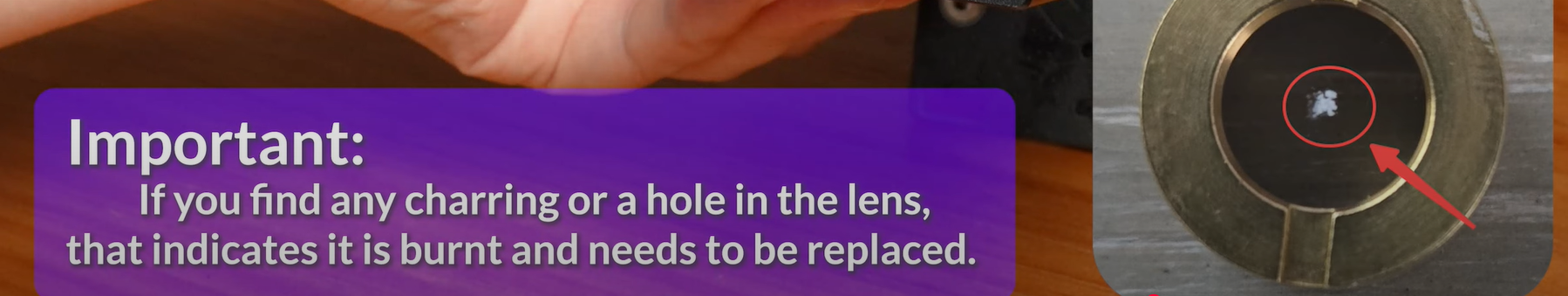

3. Dirty/Fogged/Damaged Laser Lens
Over time, the laser lens can collect residue or fog up due to smoke, dust, or material fumes. This build-up can scatter the laser beam, weakening its effectiveness and causing uneven marks.
Solution: Regularly inspect and clean the lens. Use a proper lens cleaning solution and soft cloth or swabs.
【Video】How to Clean Laser Module for Vision Pro?
【Vision】How to Clean Laser head and Camera Lens for Vision 40W laser
【Video】How to Clean Vision 20W Laser Outlet Lens to Ensure Normal Use
【Video】How to Clean and Grease Your Vista Laser

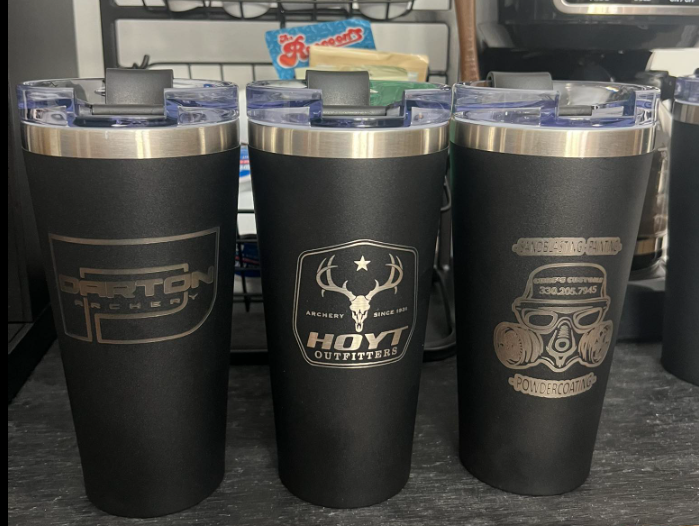

4. Material Surface Inconsistencies
Even with the same brand and batch of tumblers, small differences in the coating or surface texture can affect engraving. Some coatings may absorb the laser differently, leading to patchy or inconsistent results.
Solution: Wipe down each tumbler before use and inspect for scratches or coating irregularities. Test engrave on a hidden area if you're unsure.
5. Inconsistent Software or Machine Settings
Unintended changes in layer settings, power, or speed can lead to varying results. Occasionally, software bugs or user input errors can cause discrepancies.
Solution: Save your engraving profiles as presets and double-check settings before starting a job. Always use the latest software version.
6. Impact of File Type on Engraving Results
The type of file used—vector (e.g. SVG) vs. raster (e.g. PNG, JPG)—can significantly impact the final engraving result.
Vector Files (SVG, DXF):
- Crisp, scalable lines
- Ideal for logos, text, and geometric patterns
- More consistent and cleaner results
Raster Images (JPG, PNG, BMP):
- Better for photo-style engravings
- Susceptible to resolution and compression artifacts
- Can lead to inconsistent shading if image quality is poor
Recommendation: For repeatable, sharp results, use vector files wherever possible. For detailed artistic or grayscale work, use high-resolution raster images with proper dithering.
