Before using, you should have
- MakeIt Software: 2.0.0 or newer
- Firmware Version:
For Vision 20W, 40W: 2.0.19.005 or newer
For Vista-10w: no particular firmware version required
For Vision Pro-45W: no particular firmware version required - LightBurn Software: 1.6.00 or newer (note: camera function 1.7.00 or above)
Note: only USB connection is supported as of this moment.
Please follow the steps below:
Step 1. Click on the link to re-download the newest version of the configuration file for the LightBurn.
Step 2. open LightBurn, click on device>import>select the configuration file you just downloaded>OK
Step 3. connect the Vision machine via USB to your PC/laptop, select the port, wait for the configuration process to be completed.
Congrats! the machine is ready to go. You can create whatever you want in the LightBurn and start making your own project using the WeCreat machine.
Notice:
Before using, please calibrate the camera first: Camera Calibration with LightBurn before Working with WeCreat Lasers
Create your project: Tips for using LightBurn with WeCreat Lasers
FAQ:
1. Will this work wirelessly or only hardwired?
Only USB connection is supported.
2. Why am I unable to see or select WeCreat camera?
Please ensure the LightBurn version is 1.7.00 or above.
3. Which version of LightBurn do I need to buy to use it seamless with Wecreat laser?
If you need to use LightBurn on Vision machine, please buy the one with GCode license key.
4. How do I upgrade my firmware to 2.0.19 if I don't receive the notification on the MakeIt app?
Please provide your SN number(Serial Number) and send it to support@wecreat.com,
-
Where do I find my SN number?

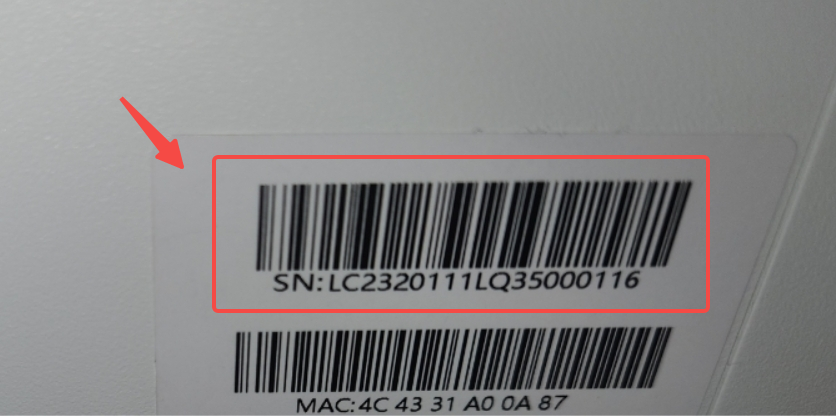

- You can find it on the back of the machine, as shown below:
- You can find it on the back of the machine, as shown below:
-
- You can also find it in the settings page in MakeIt app. (please open MakeIt software>new project>ensure the device is connected either via USB/WIFI, you should be able to see a green dot on the status bar>settings>Serial Number)
- You can also find it in the settings page in MakeIt app. (please open MakeIt software>new project>ensure the device is connected either via USB/WIFI, you should be able to see a green dot on the status bar>settings>Serial Number)
