Last Updated: 2023/12/27
- WeCreat Software Version: 1.0.2 or newer
- WeCreat Firmware Version: 2.0.12 or newer
Before calibration, please note:
- Prepare a clean A3 size wooden board, without any traces of engraving or cutting. Our product packaging includes an A3 size, 3mm thick wooden board. You can use it for calibration. If it has already been used, you can prepare a clean A3 white paper, spread it on the wooden board for calibration.
- Ensure that the laser beds are placed accurately, flat, without any protrusions, with the side with screws facing up.
- The wooden board is placed flat, aligned with the lower left corner.
Please follow the steps to calibrate your camera:
Step1: Insert the pluger into the outlet and switch on your Vision.
Step2: Connect your Vision to the computer via USB cable.
Step3: Open WeCreat MakeIt software and click on "New Project"

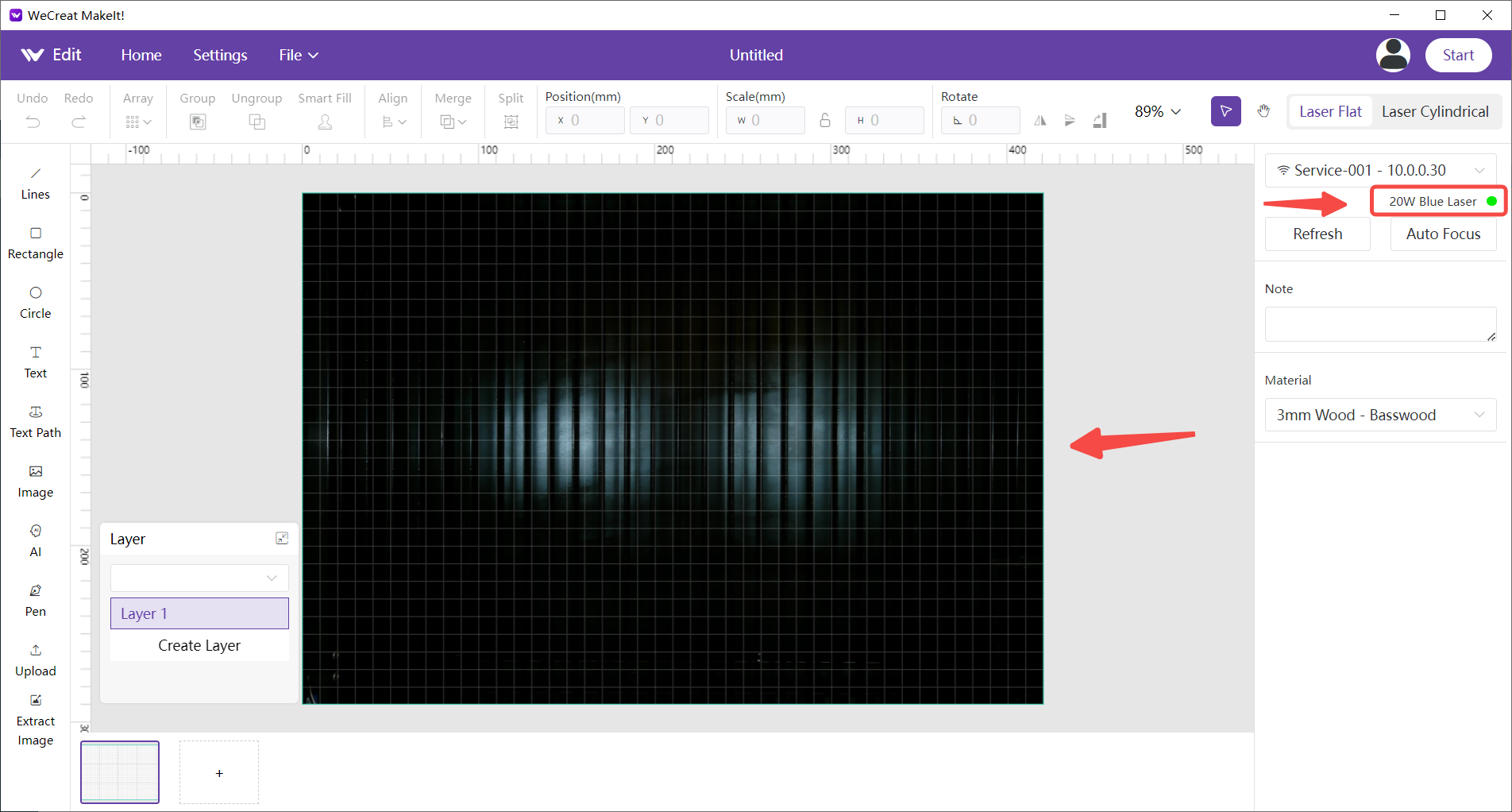

Step4: Check if the canvas shows the real workspace inside machine and the connection status is in green.

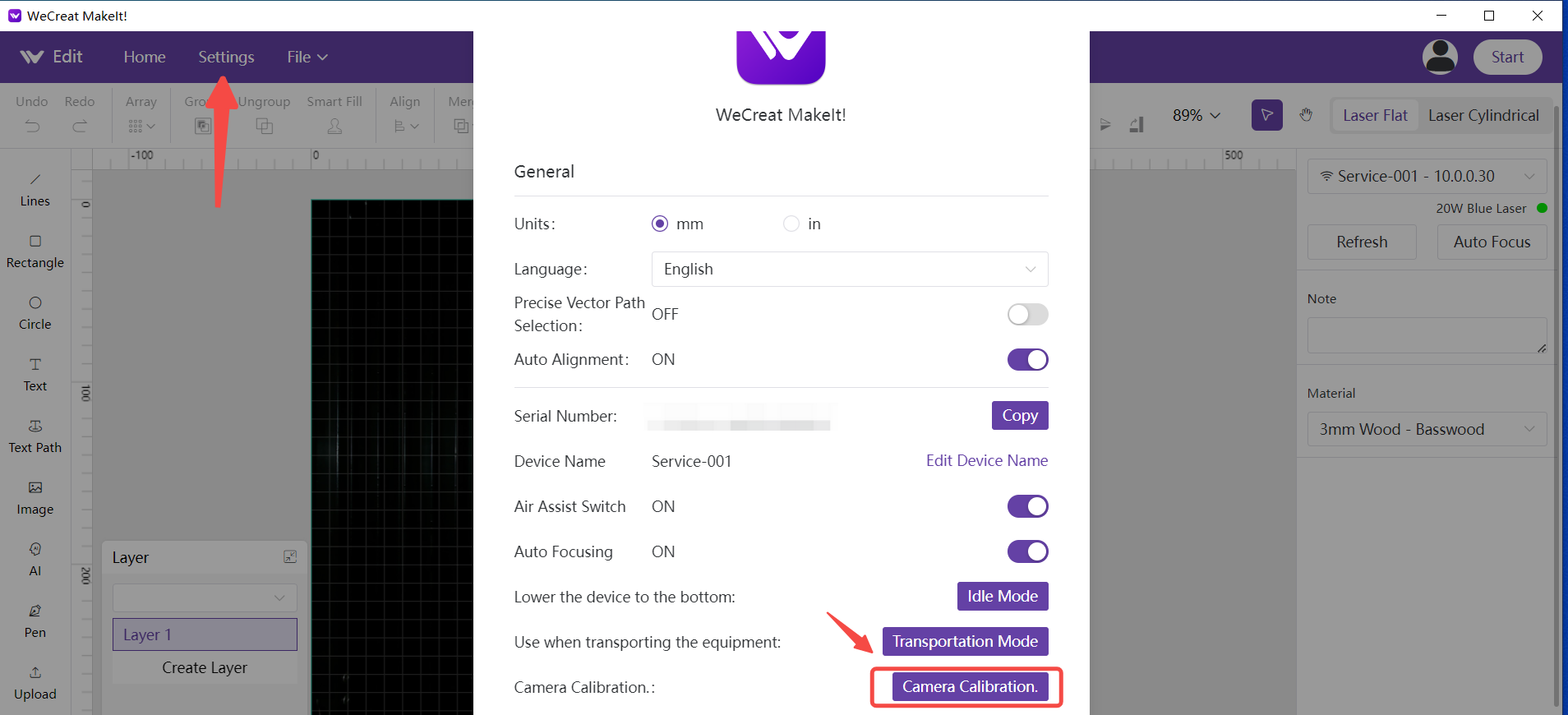

Step5: Click on "Settings" and "Camera Calibration"

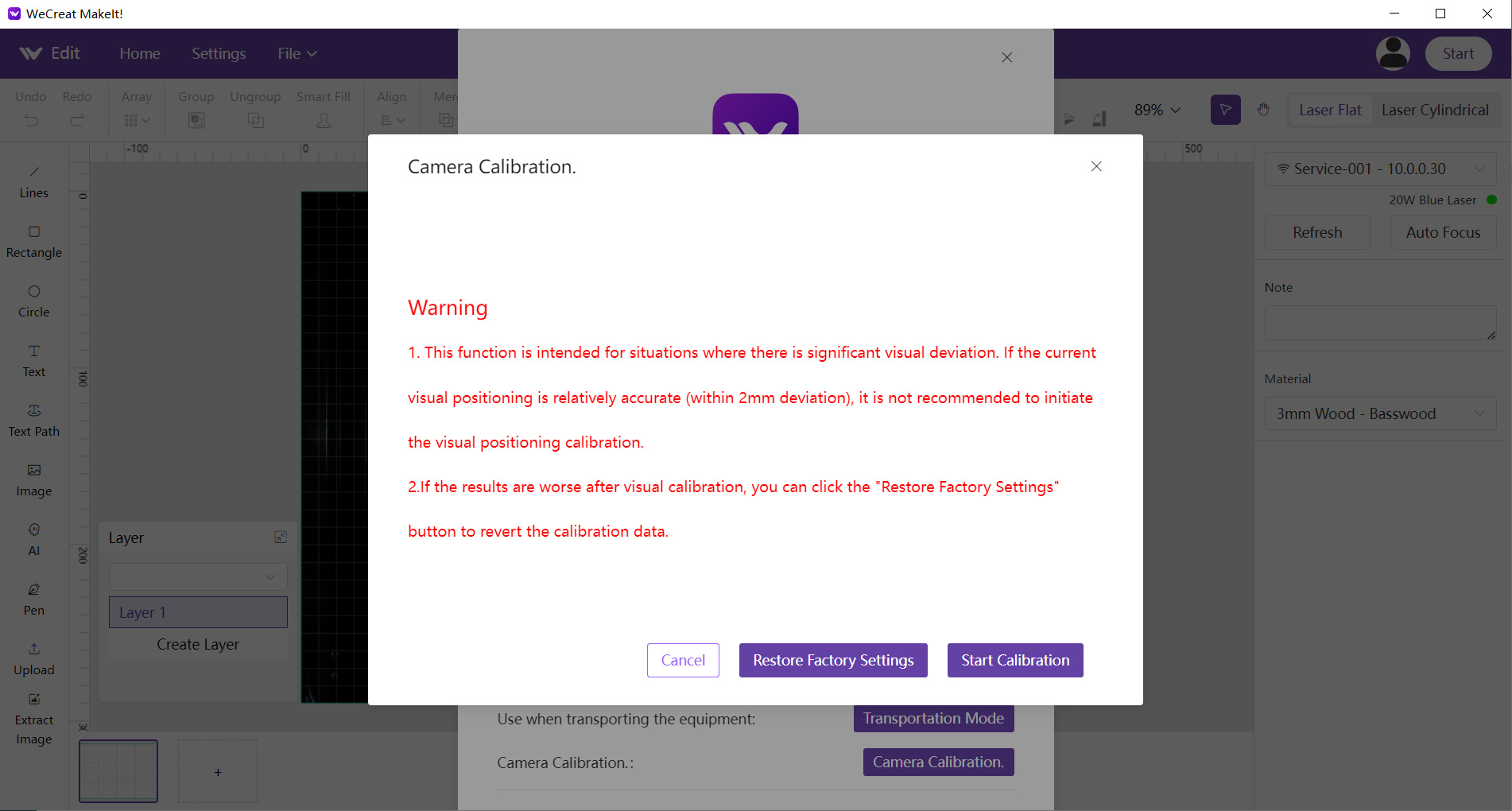

Step6: Read the warning carefully and click Start Calibration
Step7: Re-confirm that the wooden board meets the requirements, enter the board thicknesses
Step8: Double-check that the boards are placed as required, and then click Start Calibration.
Note:
During calibration, if the system prompts an error and calibration failure, please provide us the following information for further assistance.
- A screenshot of the error message
- A video showing the movement trajectory of the machine’s laser module during calibration

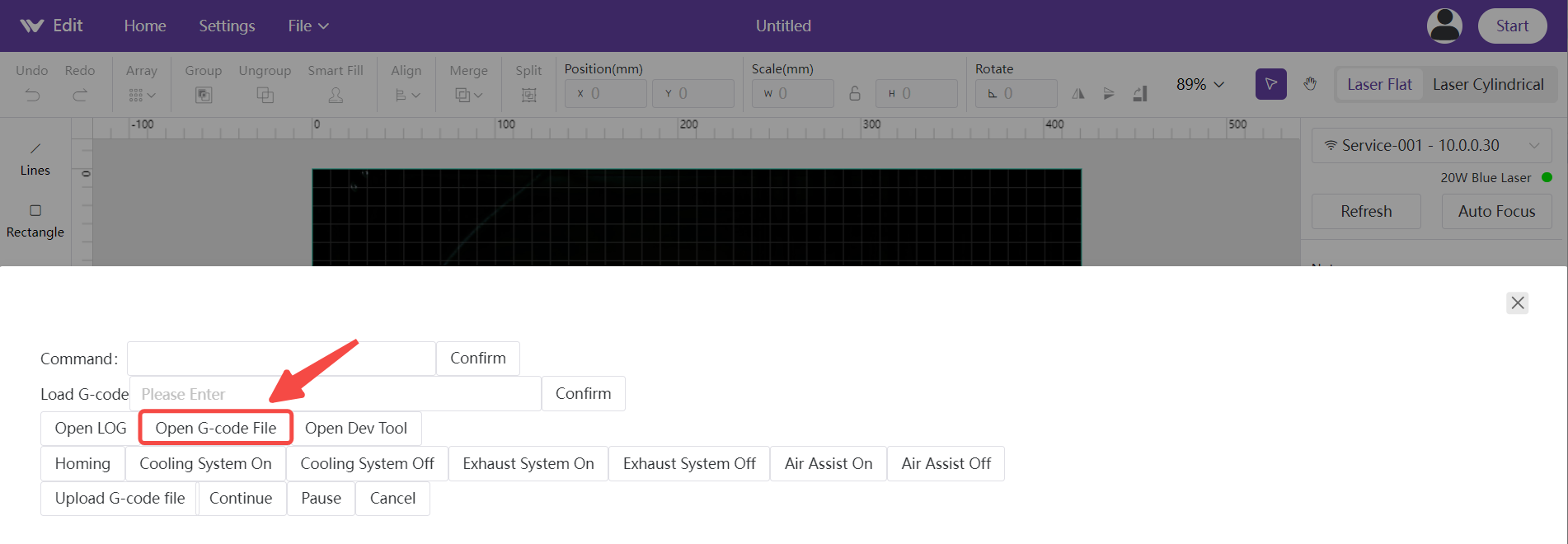

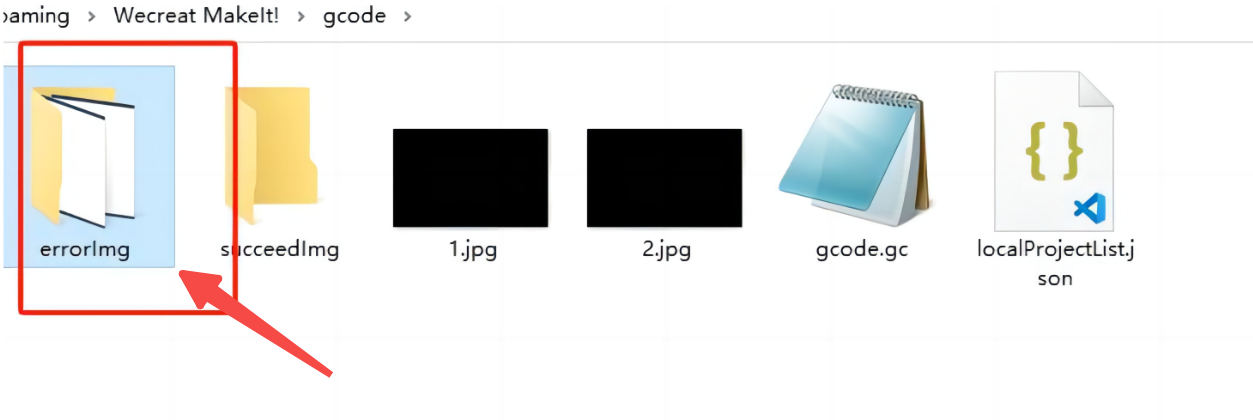

- All photos taken at the time of the error in the operation log （Press“Ctrl+Shift+P”>Open G-code File>errorlmg）
