Last Update: 2023/12/12
Connecting our WeCreat Vision to software via WiFi provides a convenient way to control and manage operations wirelessly.
Below are detailed steps for connecting:

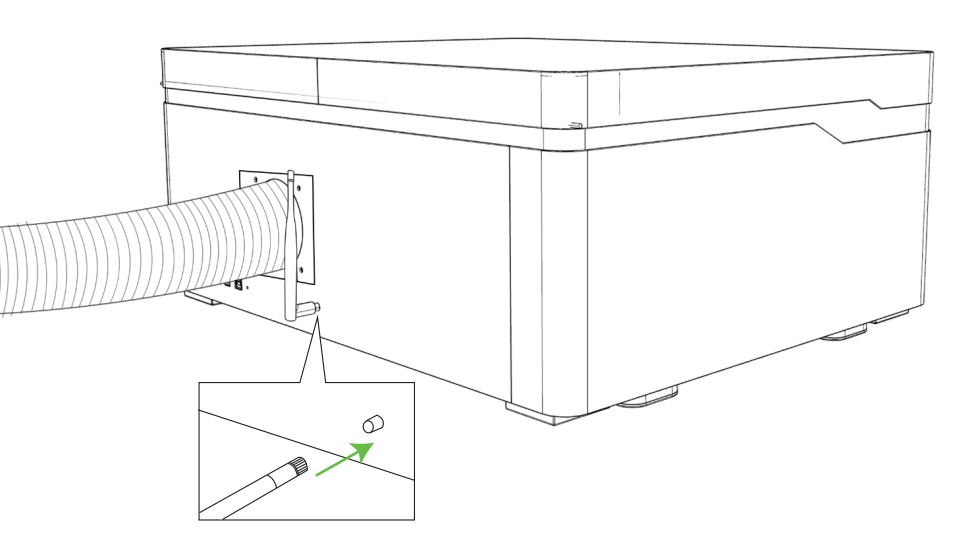

Step One: Install WiFi Antenna
Insert the WiFi antenna into the designated port on the back of WeCreat Vision and ensure it is securely attached.
Please note that the antennae pole is movable, it is recommended to lean against the exhaust hose to ensure that the vertical

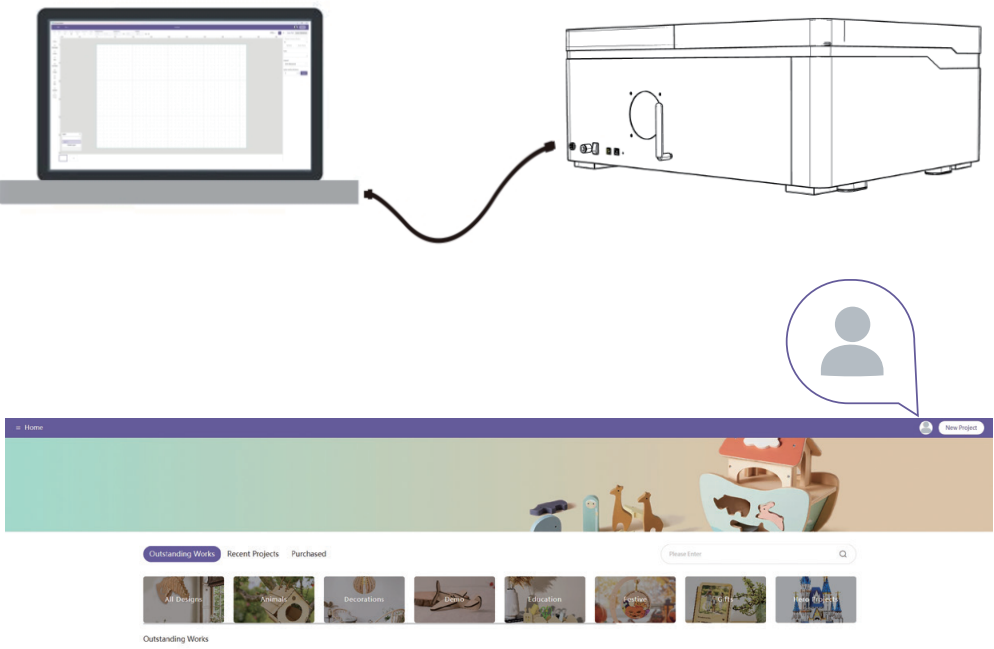

Step Two: USB Connection to Computer
1. Use a USB cable to connect our Vision to your computer.
2. Launch our WeCreat MakeIt software and log in to your account.

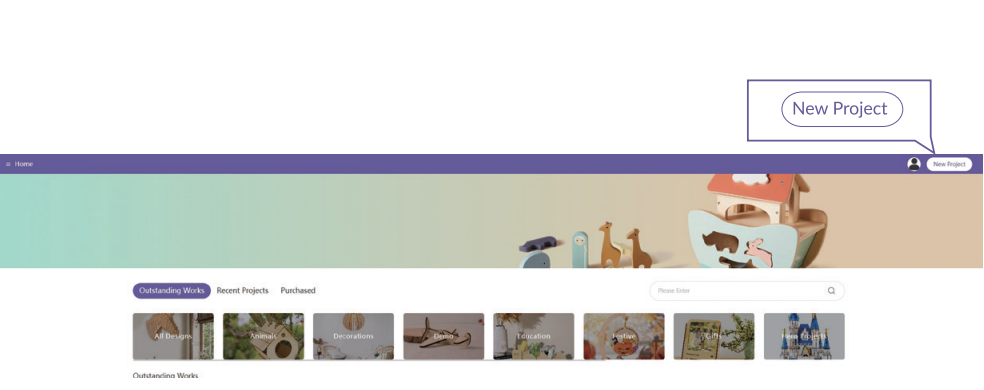

Step Three: Select "New Project" on the software interface to initiate a new project.

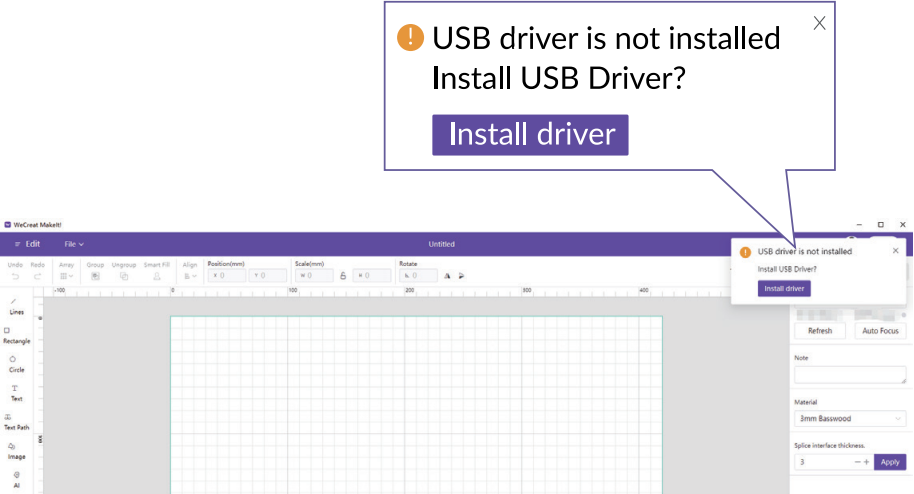

Note: For windows operating system version lower than Win 10, it may ask you to install the USB driver first, please follow the prompts to finish the installation.

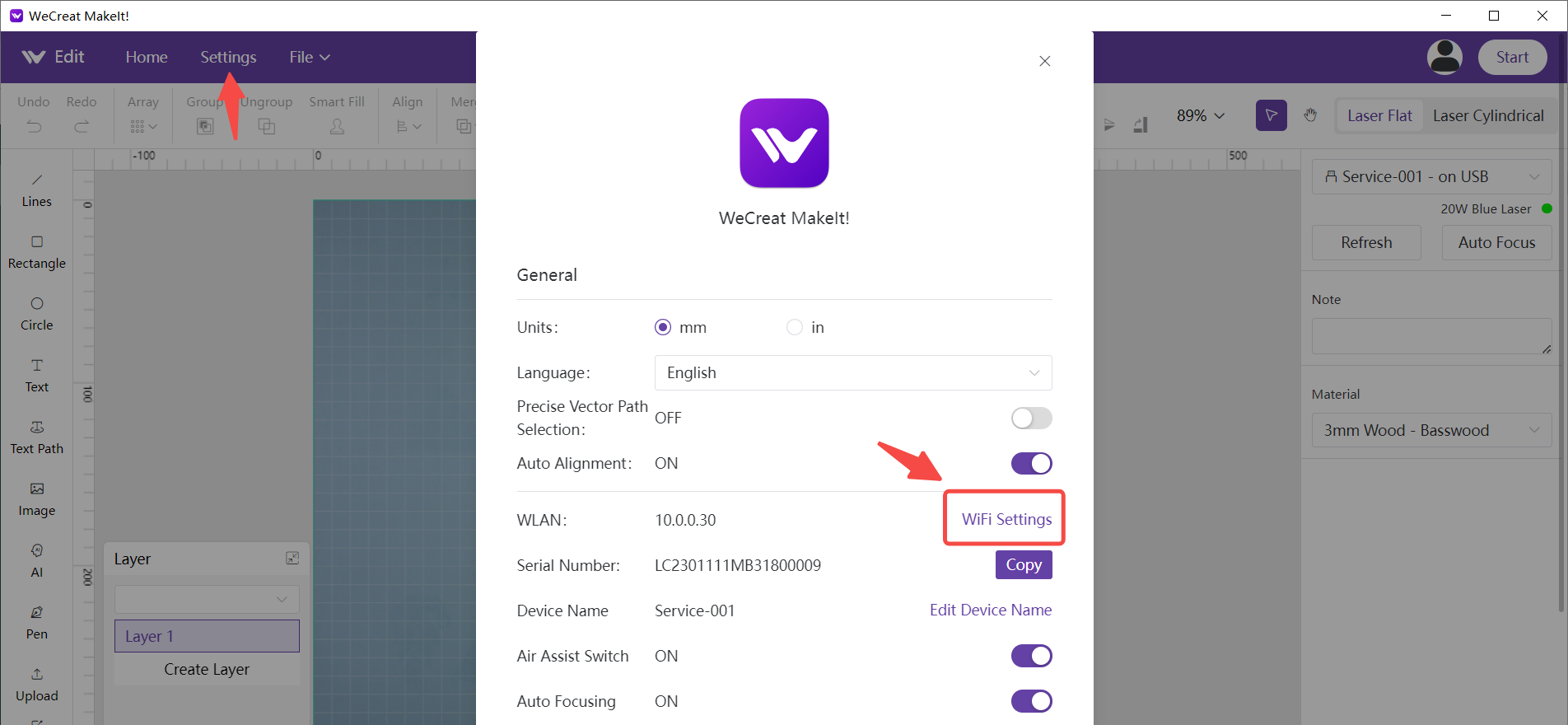

Step Four: WiFi Settings
1. Navigate to the "Settings" option within the project settings.
2. Access the "WiFi Settings" interface.
Step Five: Connect to WiFi
1. In the WiFi settings interface, locate and select the WiFi network name you wish to connect to.
2. Enter the WiFi password and confirm the input.
Step Six: Successful Connection
1. After confirming the entered information, click the "Connect" button.
2. Wait for a moment until a successful connection message appears.
**Important Notes:**
- Network Frequency Requirement: Ensure that your WiFi network operates on the 2.4GHz frequency, as the laser engraving machine supports only this frequency.
- Network Consistency: Ensure that the laser engraving machine and your computer are on the same network to ensure seamless communication.
- Manual Input of Information: If the laser engraving machine cannot find the WiFi network, manually input the WiFi name and password to establish a connection.
- WiFi Name Settings: It is recommended to use a simple and memorable WiFi name. Avoid complex combinations such as pure letters or letters with numbers. Ensure that the WiFi name does not contain spaces, underscores, special symbols, etc., to prevent compatibility issues.
By following these steps, you'll be able to connect your laser engraving machine to WiFi, enabling more convenient remote control and management of the machine's operations.
