Notice: This article is only applicable to the standard rotary kit. If you are using the pro kit, please click this link.
--------------------------------------------------------------------------------------------------------------------

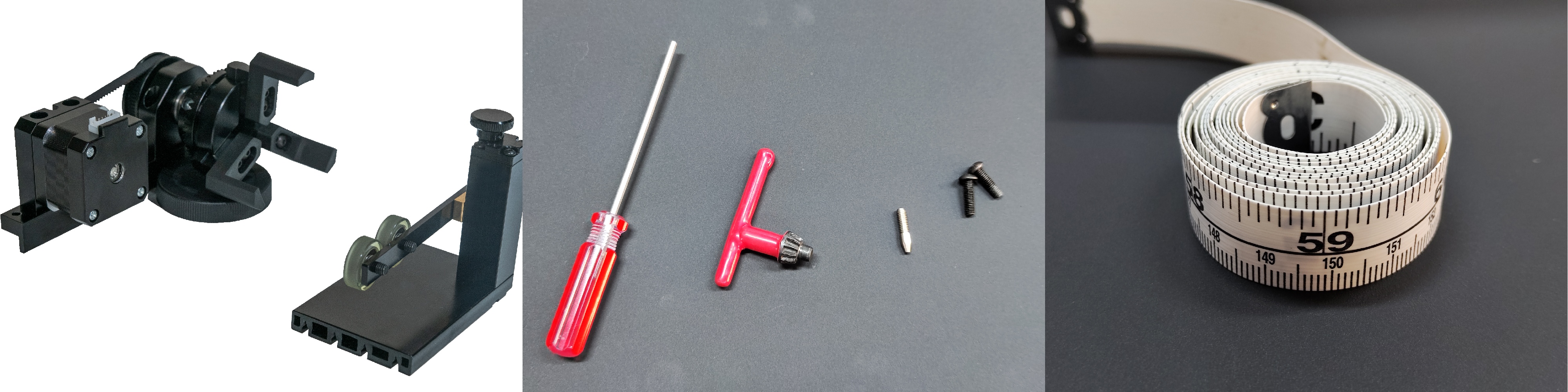

Required components: Rotary set, Rotary holder, Tape measure, Chuck key, Screws, Screwdriver, locating pin
Step 1. Take out the laser beds.
Step 2. Put the Rotary Set onto the left frame of the Vision. Make sure the middle locating pin of the Rotary Set aligns with the locating hole.

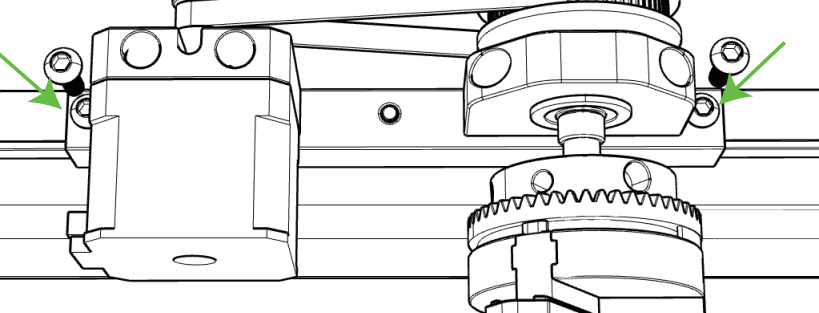

Step 3. Use screwdriver and screws to fasten the Rotary Set.

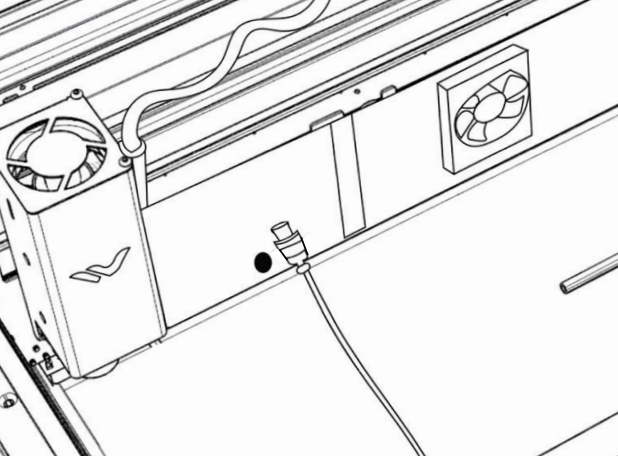

Step 4. Plug the connection cable into the port on Vision's main control board. Make sure to align the connector with the groove in the port.

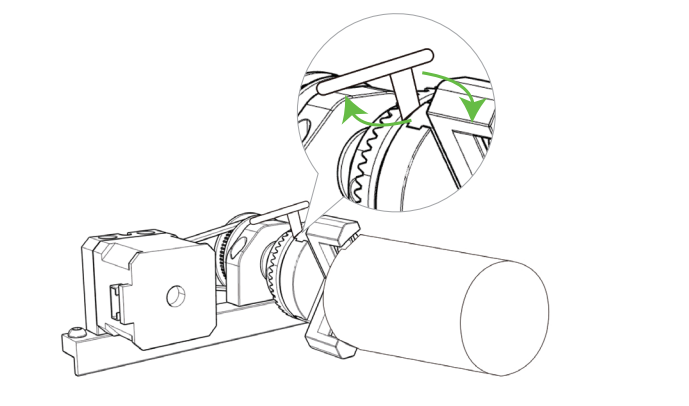

Now you can place the cylinder you want to engrave onto the jaw chuck, tighten the jaw chuck with the chuck key.
Note: There are three holes for chuck key on the base. Use the chuck key on all three holes to ensure the cylinder is firmly fixed.

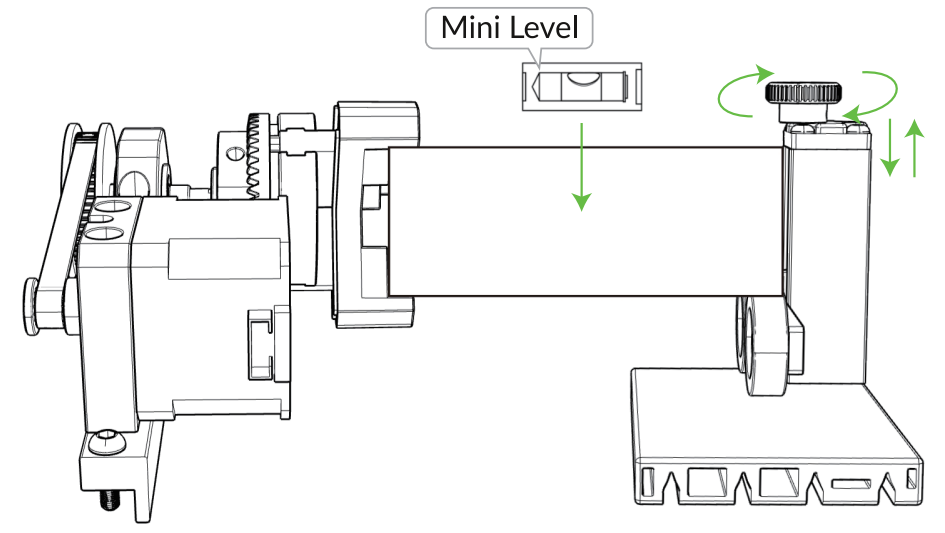

Place the holder part underneath the cylinder end, spin the top wheel to adjust the height of the holder to ensure the cylinder is supported. You can use the supplied mini level to check if the cylinder is horizontally fixed.

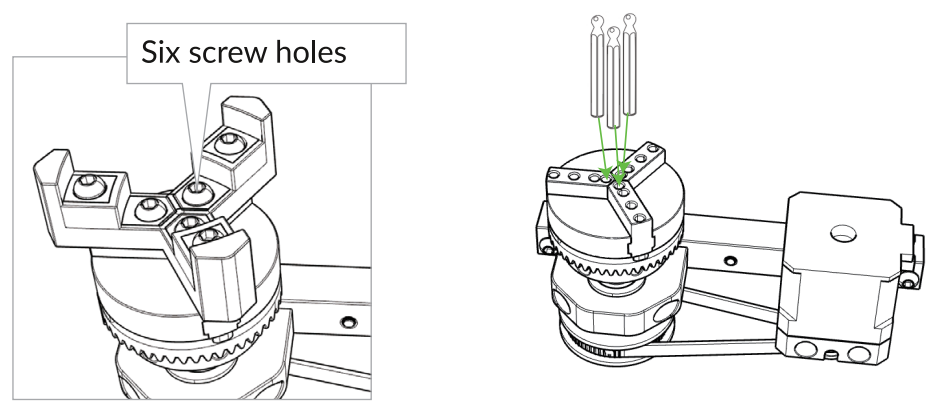

If you would like to engrave on small objects such as rings, please take out the six screws and remove the jaws, then install the three threaded studs on the jaw chuck.
