Last Updated: 2023/12/27
The working area of our machine is just the size of an A3 wooden board, which is also the same size as our software canvas.

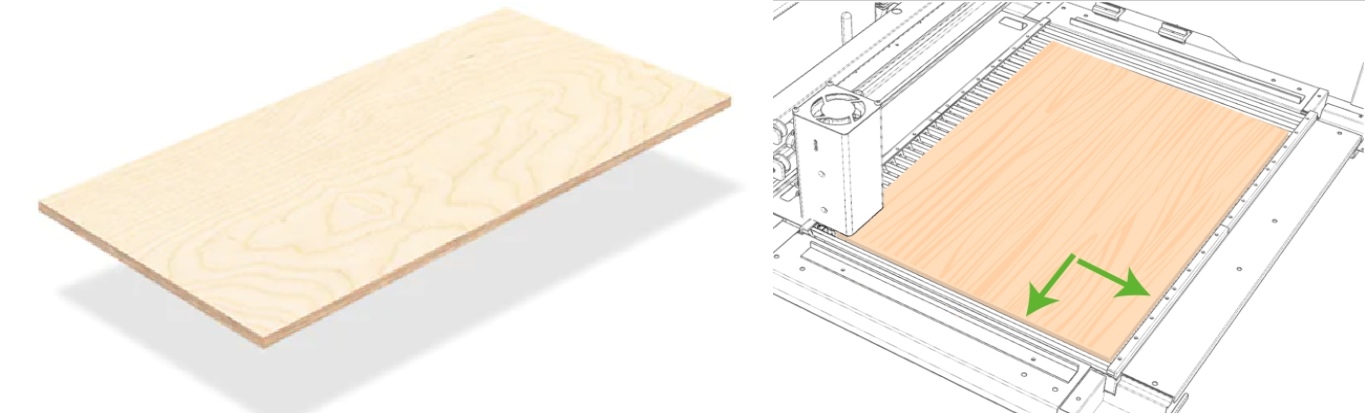

Please note: The wooden board is placed flat, aligned with the lower left corner.
|
Working Area |
Max. Materials Dimensions |
|
420*290mm (16.54"*11.42") |
475mm*318mm (18.70"*12.52") |
|
Rotary engraving diameter |
Max. Workpiece Height |
|
1-100mm (0.04" - 3.94") |
140mm (5.51") without laser bed |
Note:
One small grid on the canvas represents 10mm*10mm on the material.
