Instead of controling the Z-axis movement through the app, here are some useful tips for you:

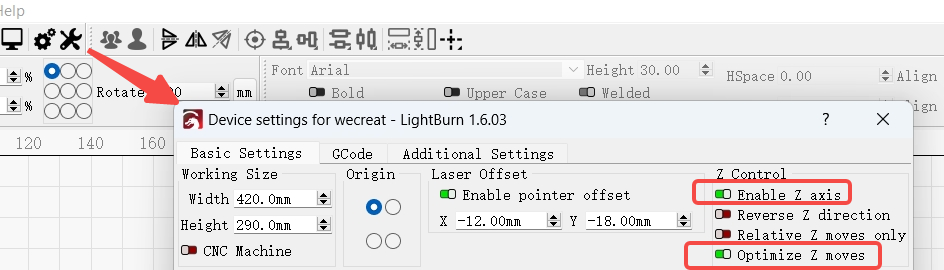

Step1. Click on the Device Settings>Enable Z axis and Optimize Z moves
Step 2. Set the Z offset value for the layer
- For Vision models, click on the layer and set the Z offset to 100mm.
- For other models, set the Z-offset to the max thickness of materials supported, like 20mm.
Step 3. Input the thickness of the material, for example, 3mm>Play with parameters settings>click on start, the laser will automatically lower to the optimal height and start the process.
