In MakeIt software, "Engraving," "Fill Engraving," and "Cutting" represent three distinct processing modes, each with its unique method and purpose of application:

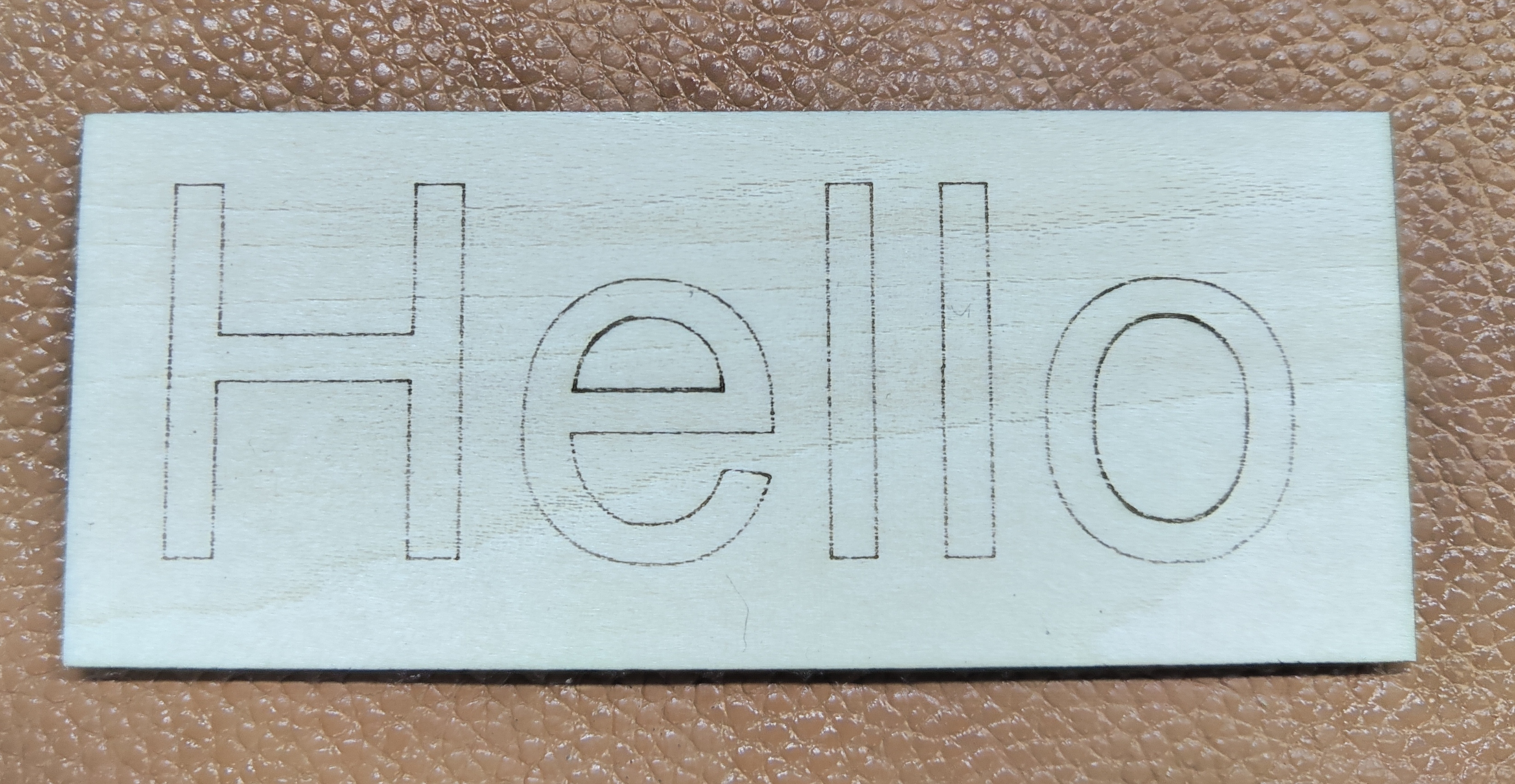

1. Engraving
- Definition: Engraving mode uses the laser to etch designs or text onto the surface of a material without cutting through it.
- Characteristics: During engraving, the laser head moves at a higher speed with lower or medium power settings to remove only the surface layer of the material. This mode is suitable for creating surface patterns or text markings.
- Applications: Ideal for producing detailed patterns or text on materials like wood, acrylic, leather, etc.

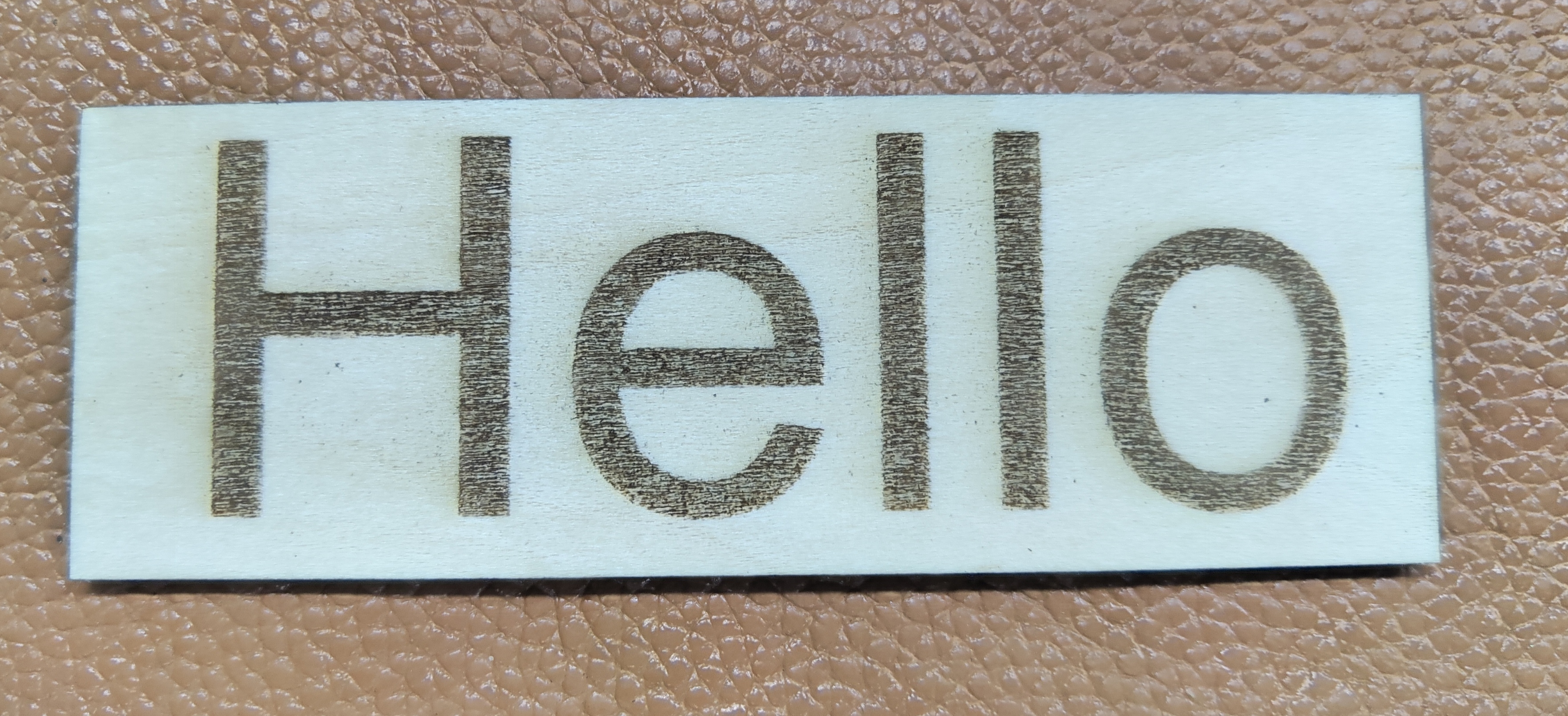

2. Fill Engraving
- Definition: Fill engraving builds upon the basic engraving process by filling in selected areas, giving patterns or text a fuller appearance.
- Characteristics: The laser head scans back and forth multiple times inside the design area to fill the entire selected region. The power and speed settings depend on the desired depth and fill density.
- Applications: Used for designs that require emphasized visual effects of patterns or text, such as medals, commemorative items, etc.

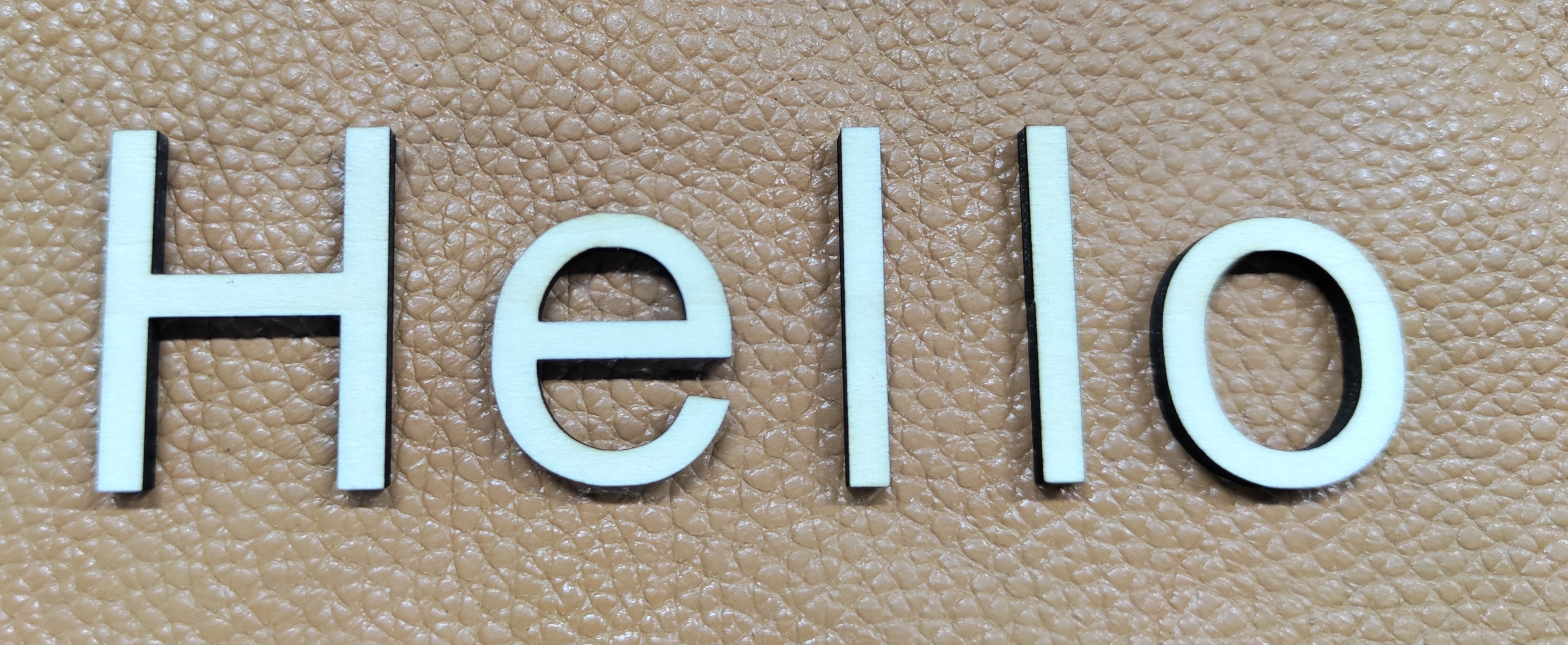

3. Cutting
- Definition: Cutting mode utilizes the laser's high energy density to penetrate and precisely cut through the material.
- Characteristics: The laser head moves slowly with higher power settings to ensure the laser fully cuts through the material. The edges of the cut are typically very smooth.
- Applications: Suitable for creating models, puzzles, woodcuts, acrylic pieces, and any situation where materials need to be completely severed to form separate parts.
Each mode can be used independently or in combination with others, depending on the design requirements and material types, to achieve the best results. Choosing the appropriate processing mode is crucial for enhancing product quality, efficiency, and expanding creative possibilities.
