Available for Software version 2.0.8 or above
Laser Flat Mode only
Open to all WeCreat Model
Step 1. Import a design file and complete the parameter settings.

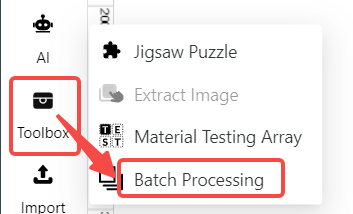

Step 2. Select the design and click on Toolbox>Batch Processing

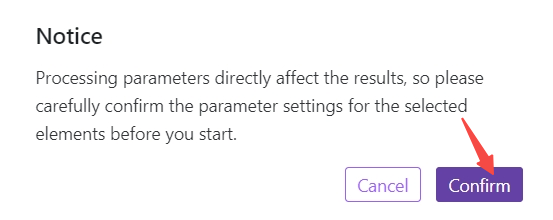

Step 3. Double-check the design parameters and click on Confirm.

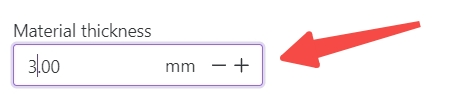

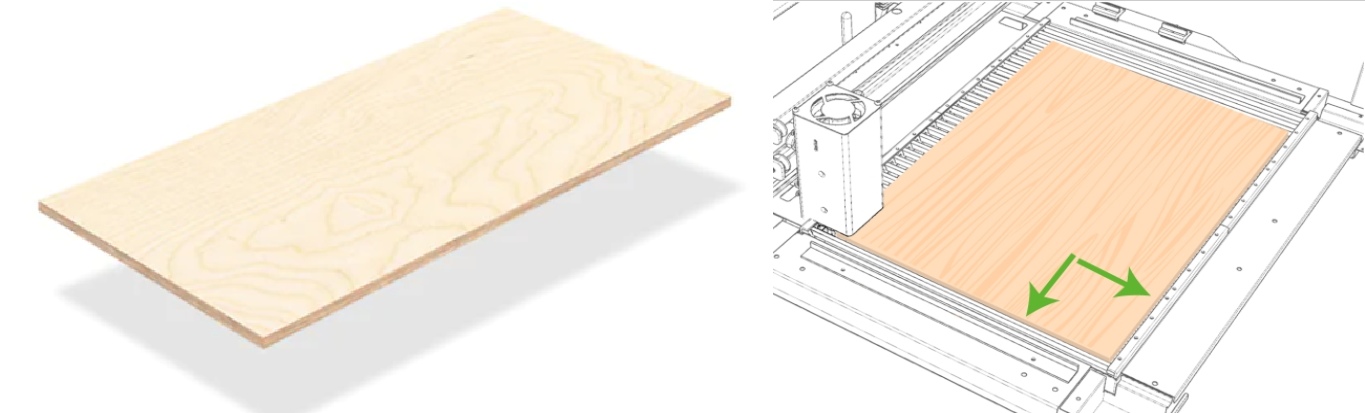

Step 4. Prepare a A3 size material and input the thickness of it.
- making sure it is clean, flat, aligning with the lower left corner.

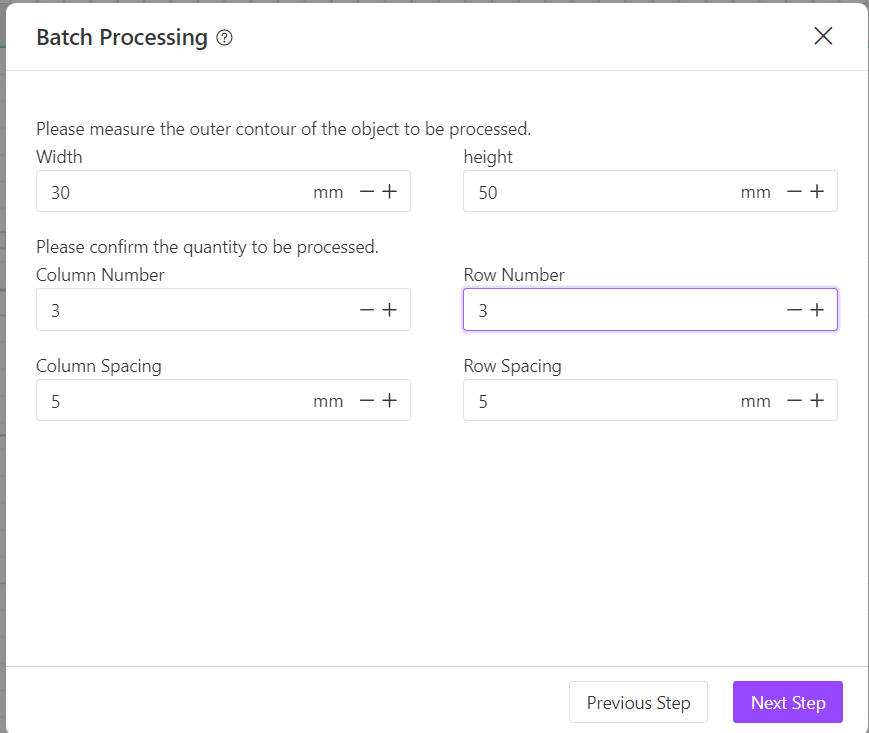

Step 5. Specify objects dimensions, the number of rows and columns for engraving, along with the spacing.
- For example: starting with 9 dog tags, each about 50 mm high and 30mm wide. so 9 rectangles of the same size will engraved on the A3 material.

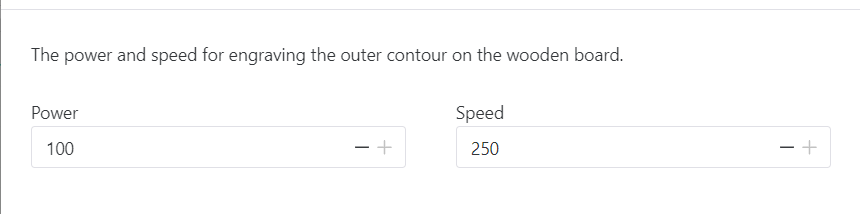

please note: the defaulted settings for the rectangle is power 100, speed 250. You can adjust it if needed.
Step 6. Press the Start button on the front and it will mark corresponding rectangles on the A3 material.
Step 7. Input the thickness of the object, for example, that of the dog tag. and place all the objects( dog tags) within these rectangles.
Step 8. Adjust the design position within the blank area if needed and press start button.
Wait until the process completes.

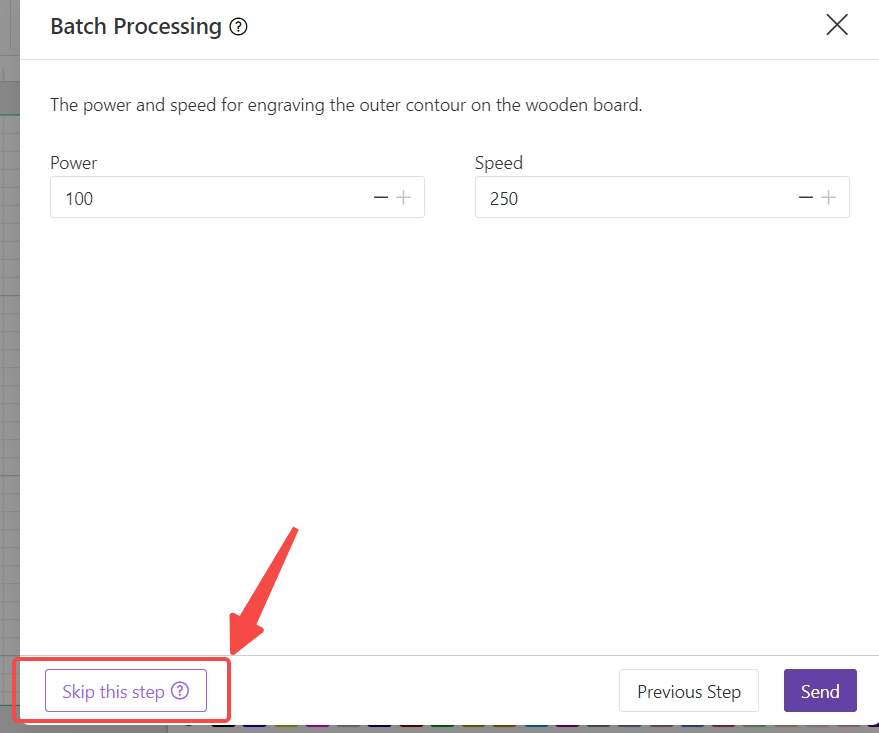

Note：if you need to process the same size material in the future, on step 5, please choose skip this step, and then move on to step 7. eliminating the need to draw rectangles.
