Available for Software Version 2.0.8 or above.
Machine Models supported: Vision 20W/40W/45W, Vista.
Firmware Requirement:
- for vision 20W/40W: 2.0.24 or above
- for vision pro 45W: no particular firmware version required
- for vista-10w: no particular firmware version required.

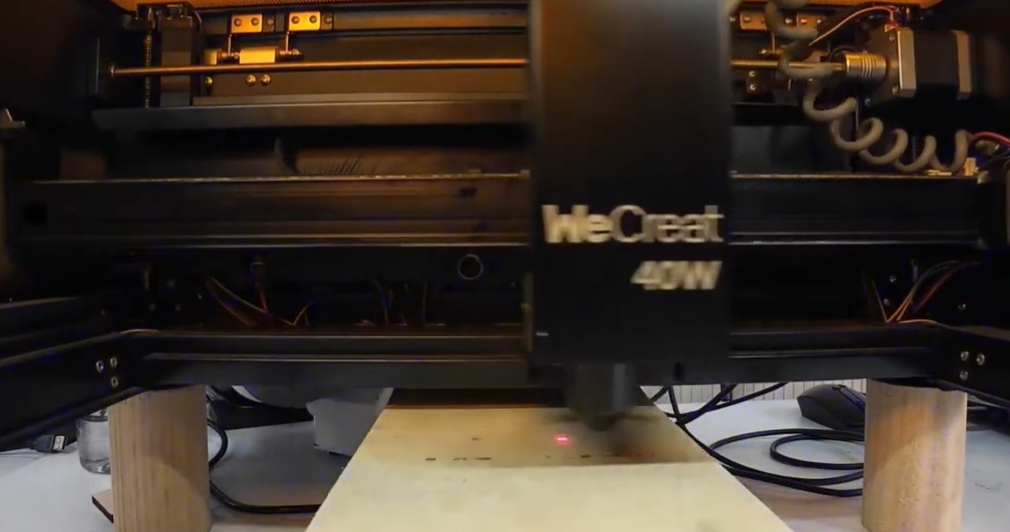

Main Benefit: Larger Material Processing Capability; able to engrave below grate/bottom tray level
Similar to laser flat mode, the overall processing procedure remains the same, however, there are a few key points we would like to draw your attention to.
Note:
In Laser Flat mode, the maximum processing thickness/height is:
| Processing Height/Thickness | Vision Model | Vista Model |
| With the laser beds | 100mm | 20mm |
| Without the laser beds(the bottom tray is not removed) | 140mm | 40mm |

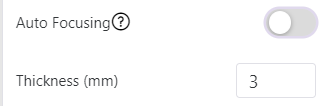

When using manual focus, the thickness should be measured starting from the laser beds, for example, a 3mm basswood is put on the laser beds, so the thickness should be 3.

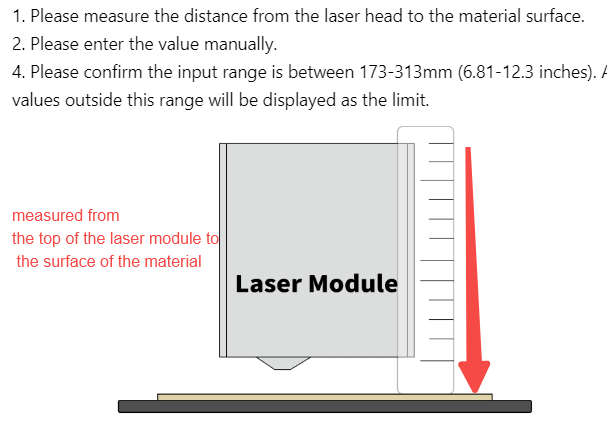

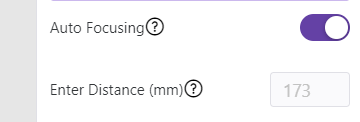

Similarly, in Free Plane mode, you can either use auto-focus or manually enter distance, the whole procedure is exactly the same. However, the way to measure distance is different.
| Distance Requirement | |
| Vision Model | 173-313mm |
| Vista Model | 114-154mm |
Please note: if the actual distance exceeds 313mm for vision model or 154mm for vista model, the machine will still process based on the maximum default distance.
