Available in Software Version 2.0.4 and Above

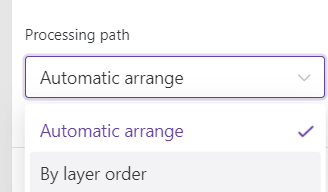

Automatic Arrange:
- Line and Fill engrave first, then Cut.
- For Engrave: the laser is defaulted to process engraving tasks from top to bottom and left to right.
- For Cut: from smaller size to larger one.
- the perforated line function(add breakpoint for older version) will go through based on the sequence of cutting.
By Layer Order:
The laser will process the file based on the layer you set.
Related post: Layer Management

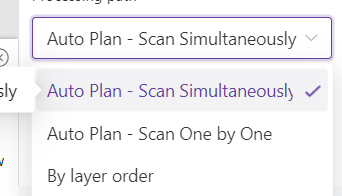

Note: in version 2.0.8 or above, a new function is added
- Scan one by one is the same as the automatic arrange in version 2.0.4
- Scan simultaneously means:
①on the same canvas, there are line engrave, fill engrave, cut, bitmap. So the order will be: Fill engrave and bitmap map first, then line engrave, finally cut.
②if all settings for fill engraving are the same, including power, speed, line density, number of passes, and the design are at the same horizontal line, they will be processed at the same time.
