Reasons for AutoMeasure Failure:
- Deep black materials or other dark-colored materials
- Uneven materials
- The machine is exposed to strong light
- Reflective surfaces or glossy materials
- Disconnection between the Vista laser and the MakeIt software
- No working area inside Vista showing on Canvas
Solutions:
- Adjust the position of the material on the laser beds and then click AutoMeasure again.
- Place a thin layer of white paper over the spot where the red dot is on the material and then click AutoMocus again.

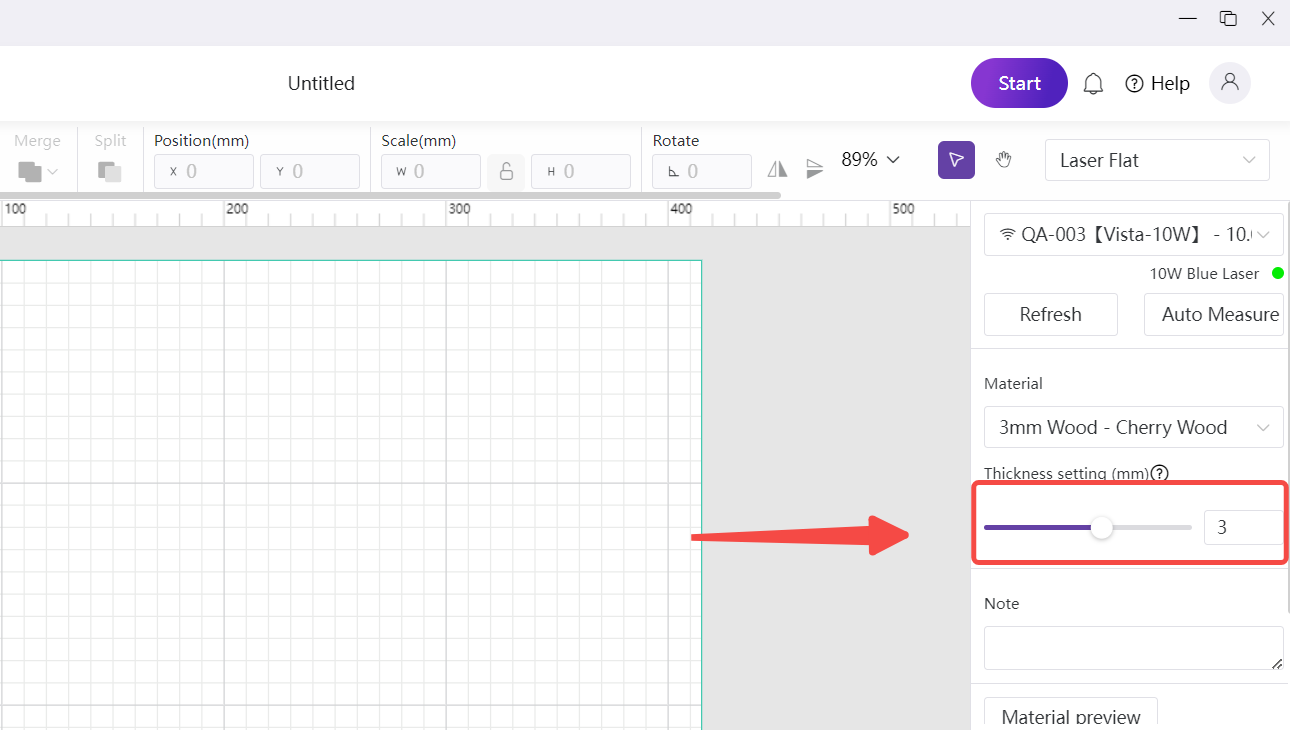

- Manually measure the material's thickness and input it.
- If no working area showing on canvas, please calibrate the camera first.
Note:
- AutoMeasure may have a deviation of around ±1mm. For materials with uneven surfaces, the deviation could be greater.
- For precise engraving/cutting, please directly input the material thickness.
Video tutorial
