Please refer to the following methods for troubleshooting:

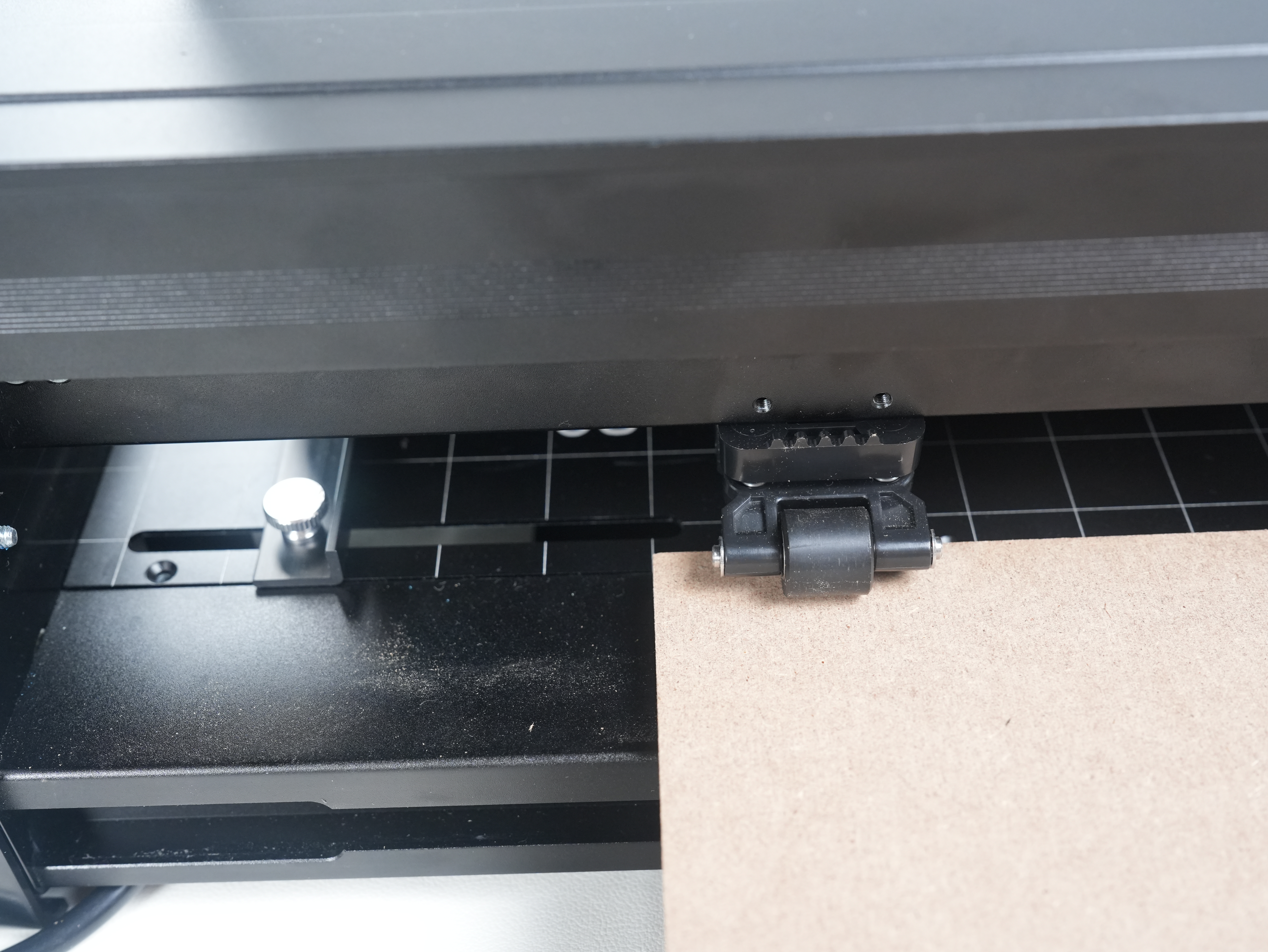

- Ensure that the edges of the wood board are aligned with the grid lines when inserting it into the pass-through feeder.

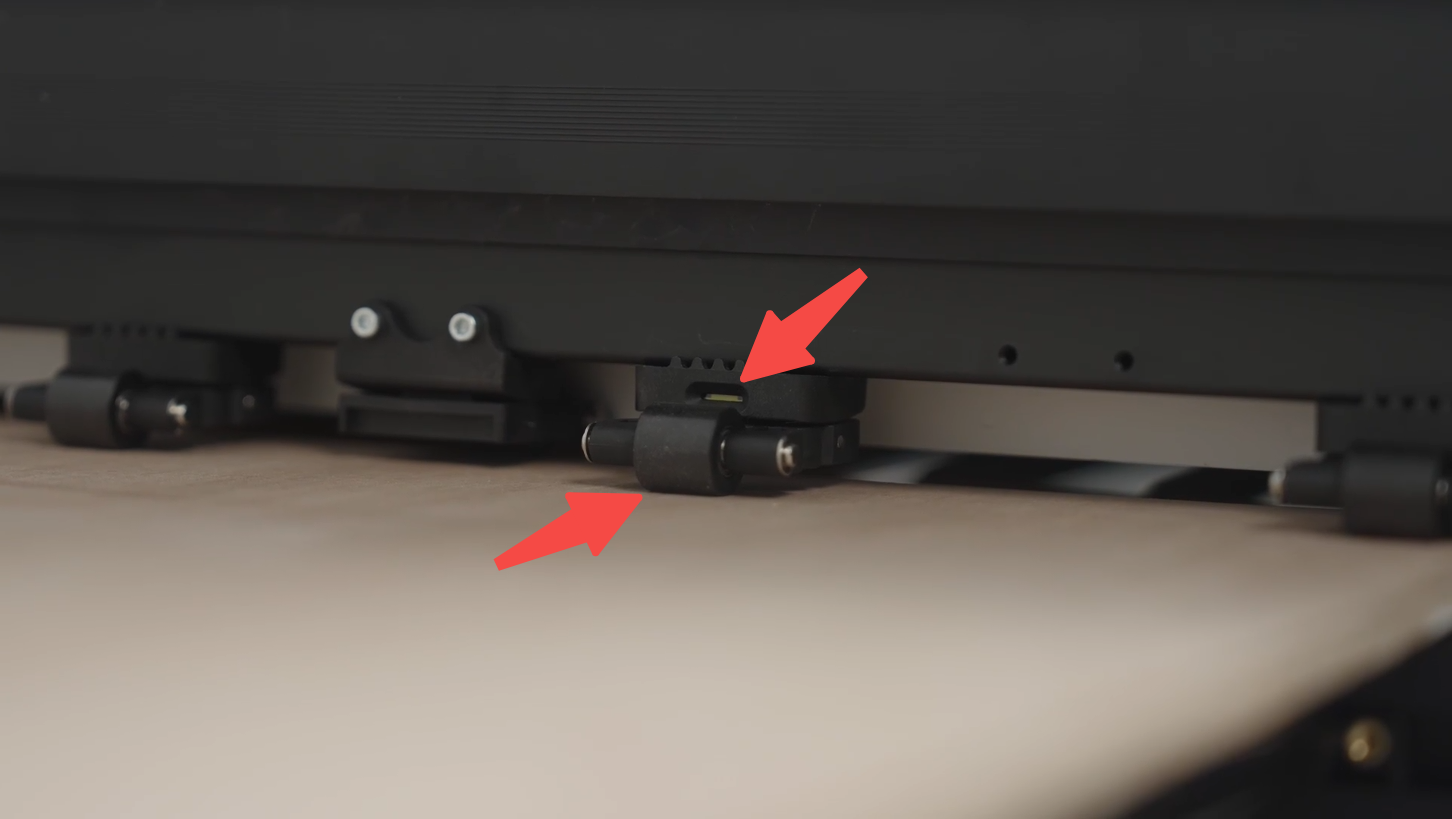

- The wood board inserted into the pass-through feeder must be fully pressed by the pressure wheels to prevent it from shifting during movement.

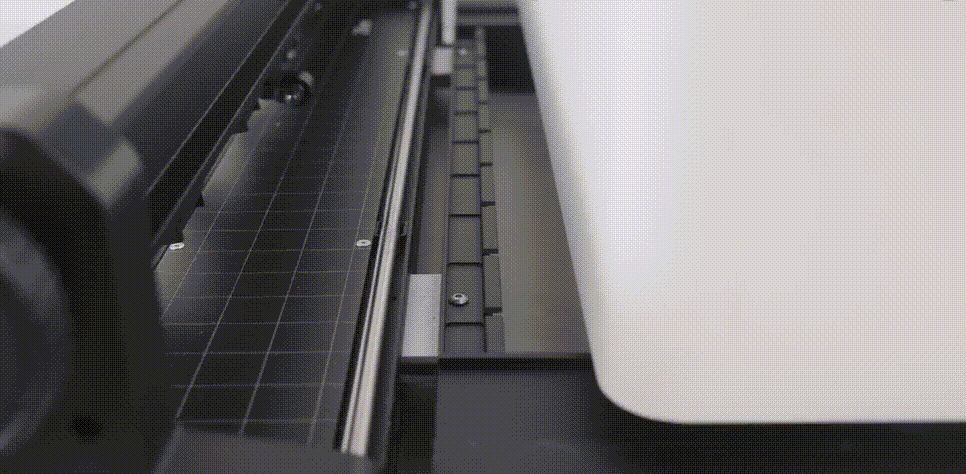

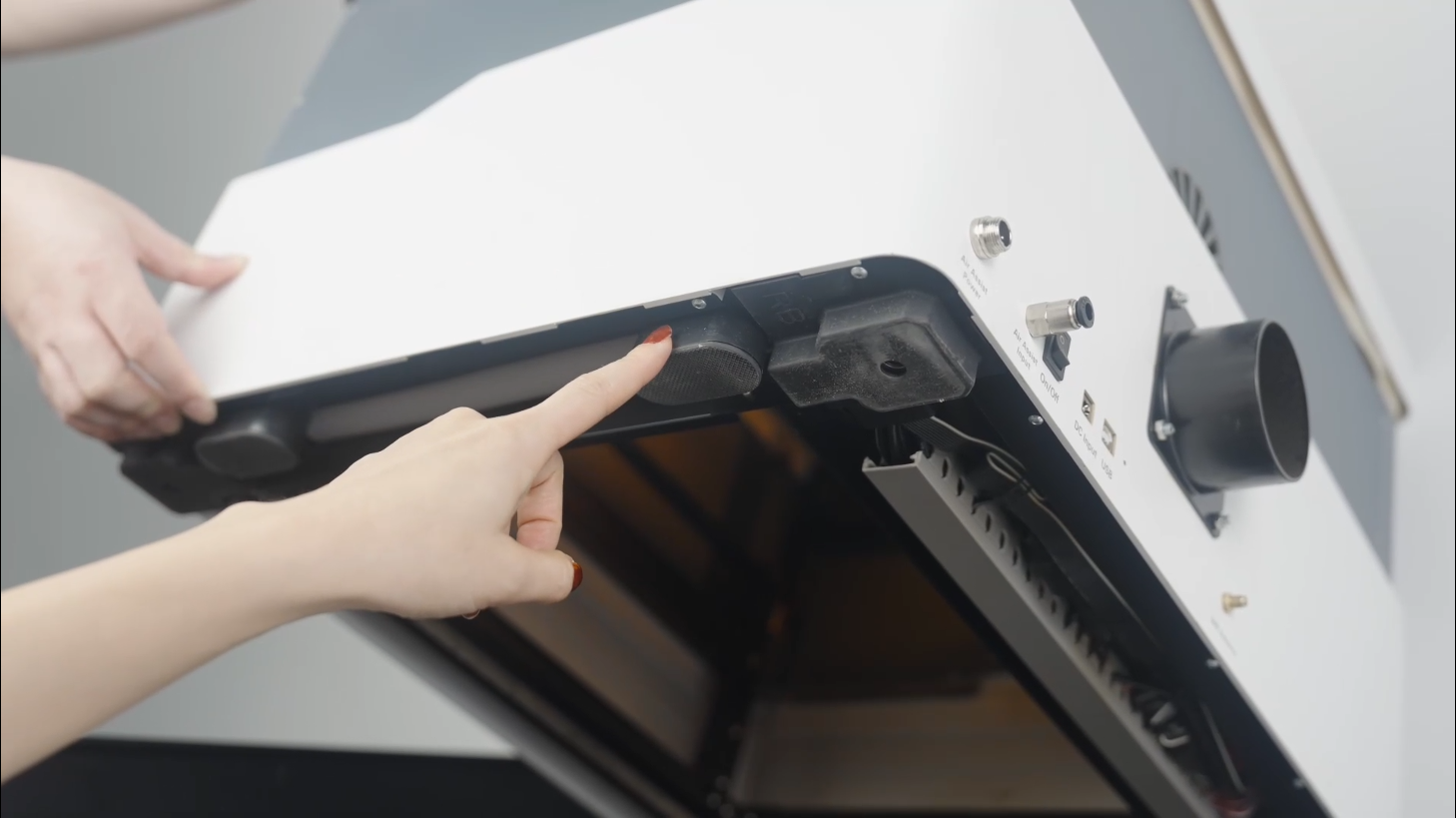

- When placing the machine on a fixed frame, the four bases at the bottom of the laser machine must be correctly fitted into the slots on the left and right frames of the pass-through Feeder.

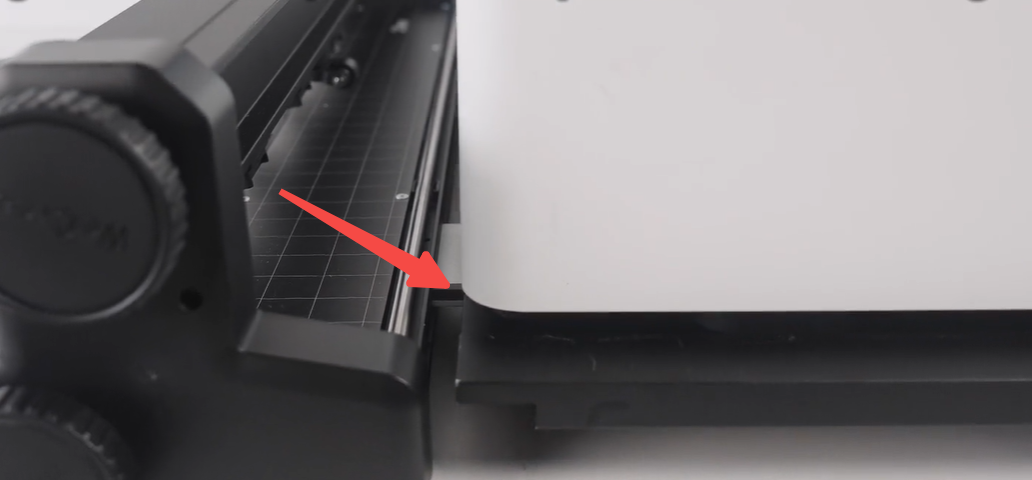

- The front panel of the laser machine must be aligned with the front frame of the pass-through feeder.
