The X-axis and Z-axis slide bars need to be greased periodically to maintain top performance. We recommend applying grease to the slide bars once every 120 hours of cumulative operation time of WeCreat Vision.
Step 1. Turn off the power.

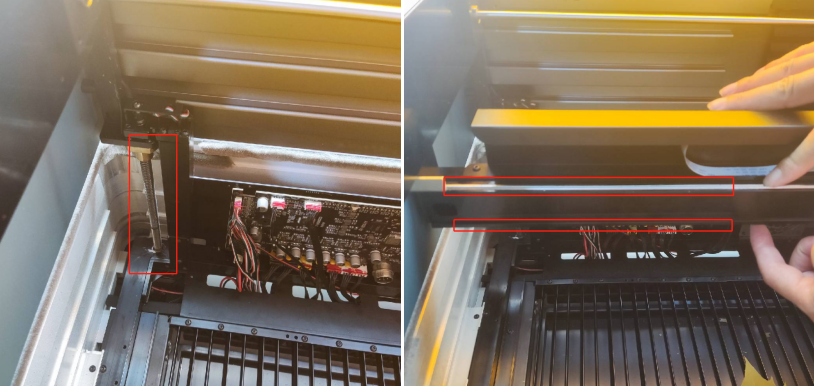

Step 2. Clean the surface of the slide bars before maintenance. The X-axis consists of two horizontal silver bars, and the Z-axis consists of four threaded bars at the four corners.
Step 3. Apply the grease evenly, wipe off excess grease.
Step 4. Manually move the laser module to see if it moves smoothly.
